HJS Advantages of ECE Tuning Downpipe

  • Euro 4/5/6/6d ECE Approval

  • performance optimize

  • sporty sound

  • EOBD compatible

  • 200/300 cpsi

  • stainless steel catalyst

  • optimised gas flow

  • HD-Design / HF-Design / TS-Design

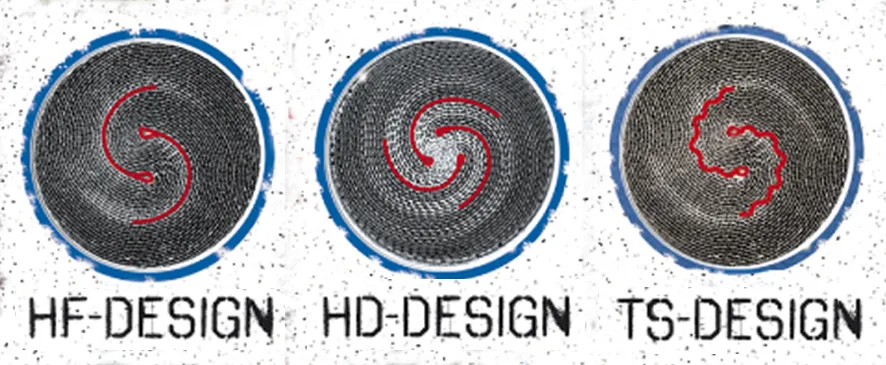

Foil structure Tuning Catalysts

HF-Design

  • double foil winding

  • two winding centers

  • high durability and strength

  • HJS tuning catalyst form EURO 3 on

HD-Design

  • triple foil winding

  • three winding centers

  • high durability and strength

  • HJS tuning catalyst form EURO 4 on

TS-Design

  • double foil winding

  • two winding centers

  • turbolence generating profiles

  • optimized efficiency

  • high durability and strength

  • HJS tuning catalyst from EURO 5 on

Less Backpressure, more Power

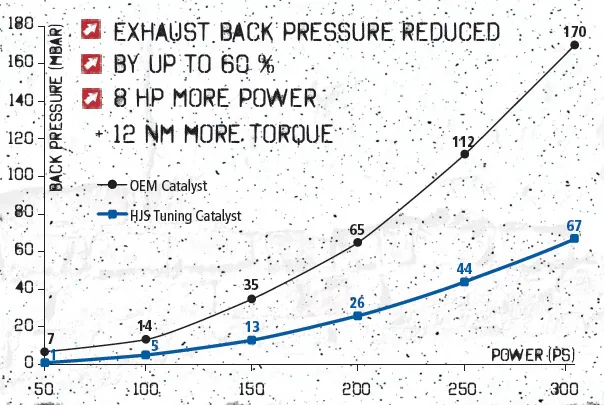

The diagram shows the result of an exhaust back pressure comparison measurement between a 400 cell original catalyst and a 200 cell HJS tuning catalyst. Test vehicle was a Mitsubishi Lancer Evolution X with a 1998 cm3 turbocharged engine with 295 HP and Euro 4 emission standard. By reducing the number of cells and the catalysts size while optimizing gas flow, a 60% reduction in exhaust back pressure compared to the original part could be achieved. The turbocharger performance could be improved by 8HP and 12Nm torque.
