HJS Motorsport PE-Catalysts

Catalytic Converter with PE-Technology

New Generation PE-Catalysts

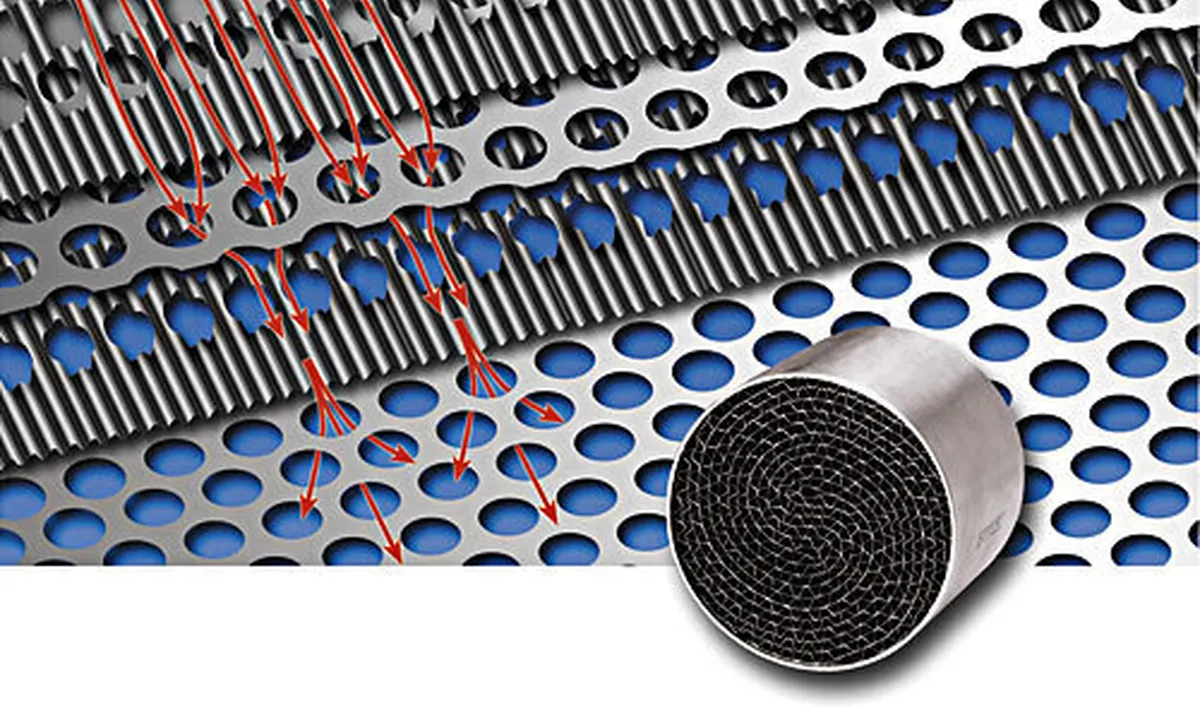

PE-Catalysts and foil

HJS Motorsport PE catalysts weigh 30% less than conventional Cup catalysts. The thickness of the foil (0.11 mm) remains unchanged. Foil perforation results in a clear weight-saving together with an up to 15% reduction in exhaust backpressure. The reduction in exhaust gas pollution is further improved by the optimised gas flow. The lighter foil (PE) guarantees the same durability as the previously used products.



Picture Drawing Catalytic Converter Weight FIA Homologation

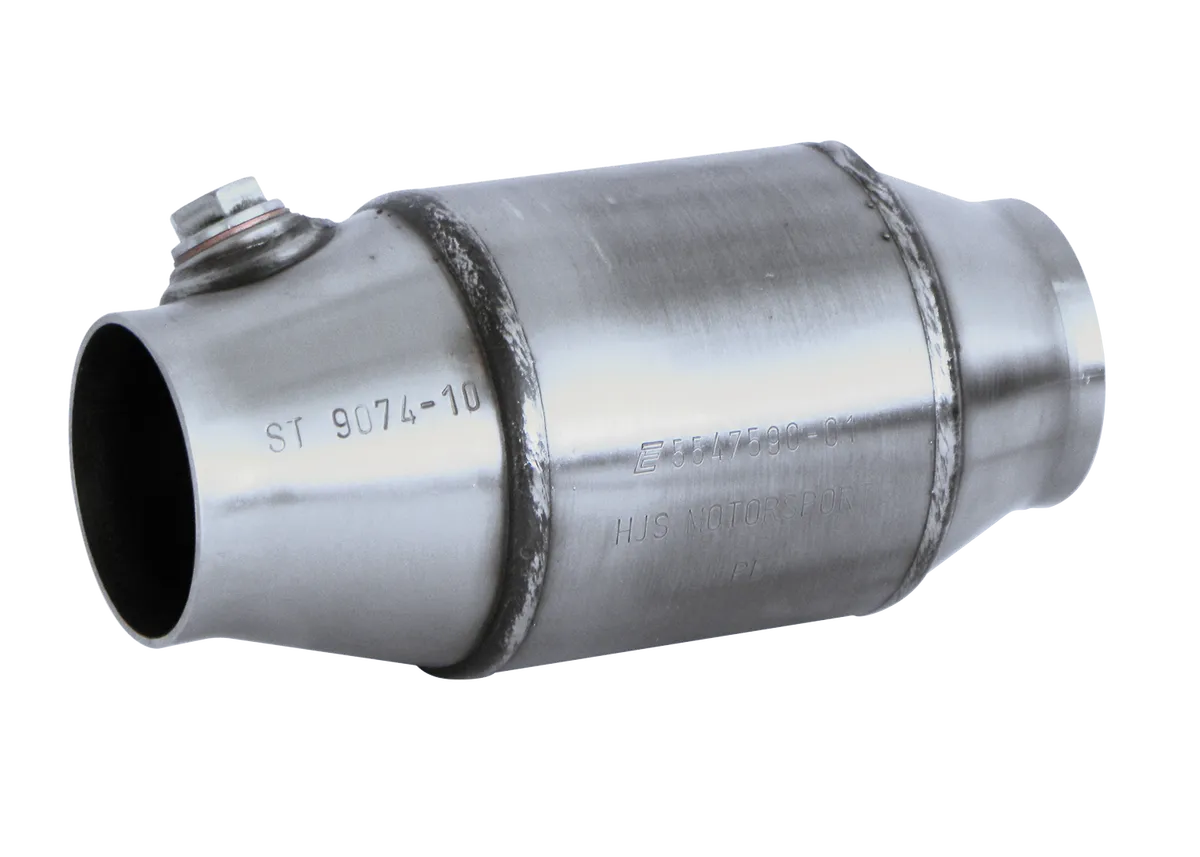

90 95 0019 90 95 0019 HJS-Nr. 90 95 0019
 ST 9074/10 PE
1.0 kg up to 180 hp/up to 1200 ccm,
up to 360 hp/up to 2000 ccm*

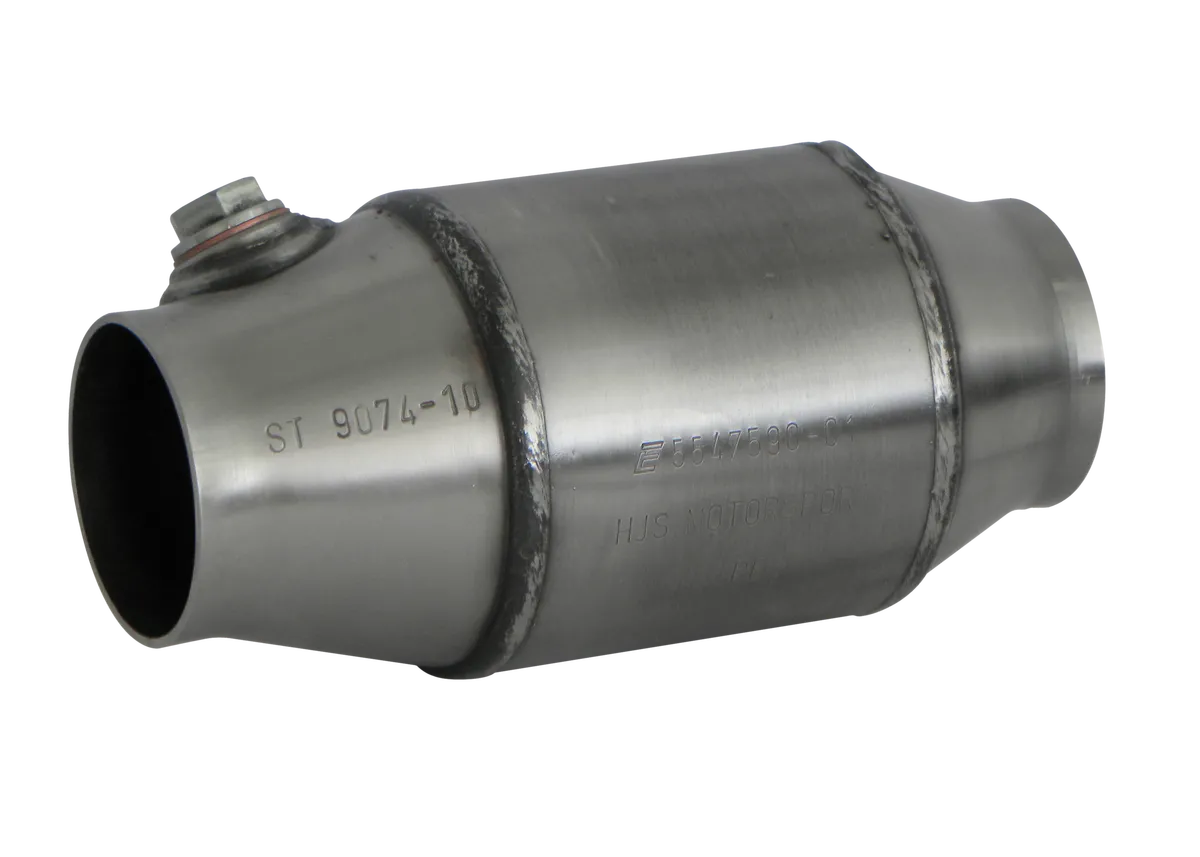

90 95 0020 90 95 0020 HJS-Nr. 90 95 0020
 ST 9074/10 PE
1.0 kg up to 180 hp/up to 1200 ccm,
up to 360 hp/up to 2000 ccm*
90 95 0578 90 95 0578 HJS-Nr. 90 95 0578
 F3 1012-10 PE
1.6 kg up to 240 hp/up to 2000 ccm
90 95 0058 90 95 0058 HJS-Nr. 90 95 0058

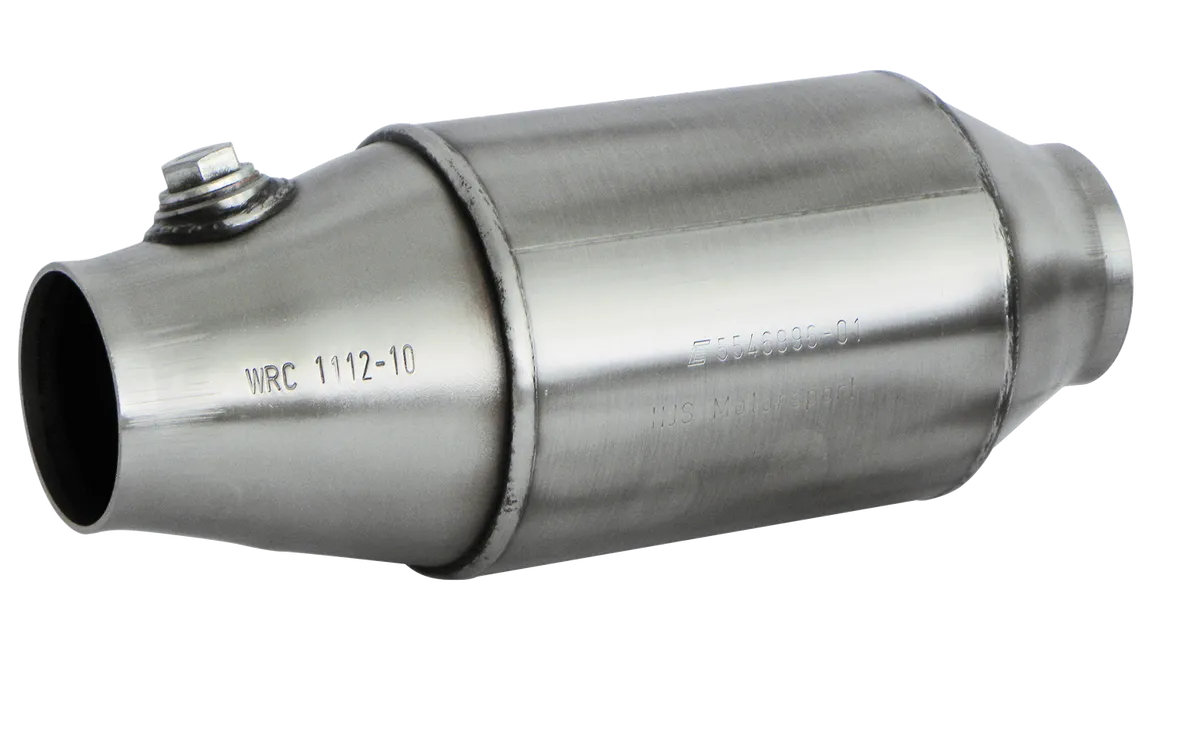

 WRC 1112/10 PE
1.8 kg up to 240 hp/up to 2000 ccm,
up to 480 hp/up to 4000 ccm*
90 95 0054 90 95 0054 HJS-Nr. 90 95 0054
 WRC 1112/10 PE
1.6 kg up to 240 hp/up to 2000 ccm,
up to 480 hp/up to 4000 ccm*

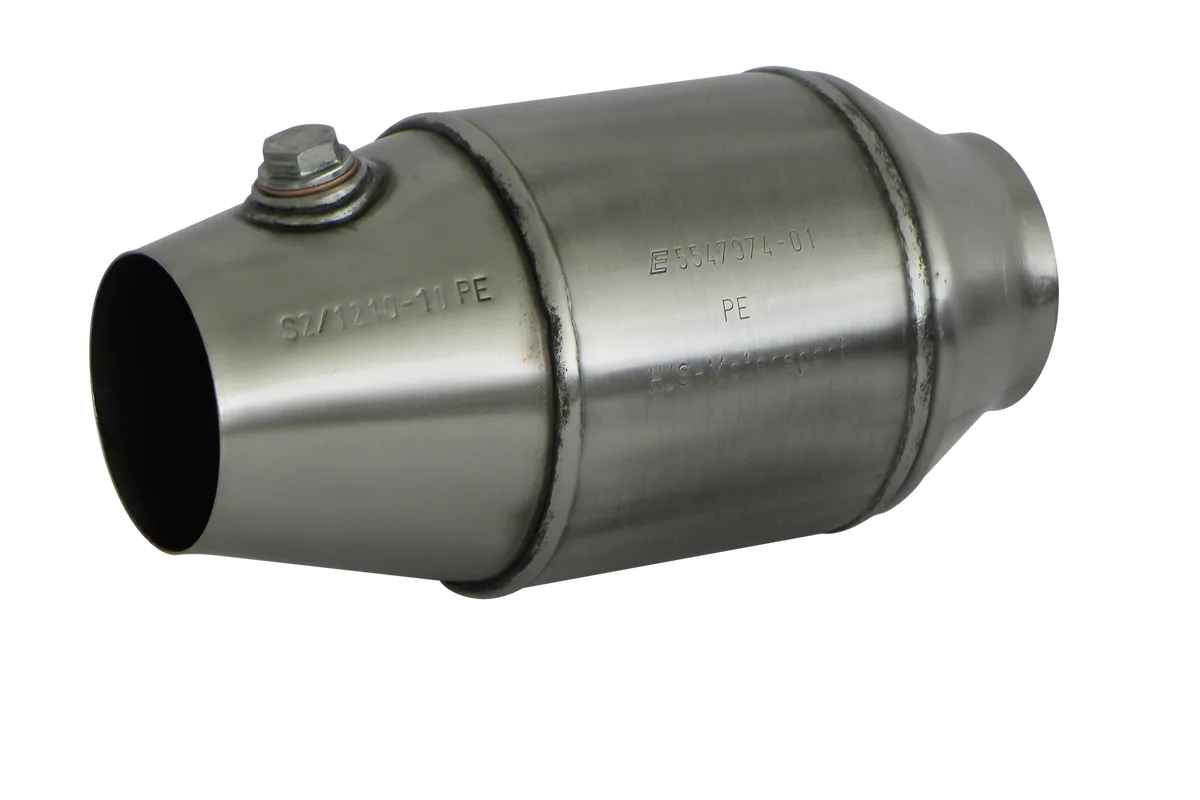

90 95 0053 90 95 0053 HJS-Nr. 90 95 0053
 S2 1210/10 PE
1.5 kg up to 280 hp/up to 2000 ccm,
up to 560 hp/up to 4000 ccm*
90 95 0060 90 95 0060 HJS-Nr. 90 95 0060
 T 1.6 1277-10 PE
1.7 kg up to 350 hp / up to 1600 ccm
90 95 0046 90 95 0046 HJS-Nr. 90 95 0046
 2/2790-10 PE
2.0 kg up to 350 hp/up to 2000 ccm,
up to 700 hp/up to 5000 ccm*
90 95 0045 90 95 0045 HJS-Nr. 90 95 0045

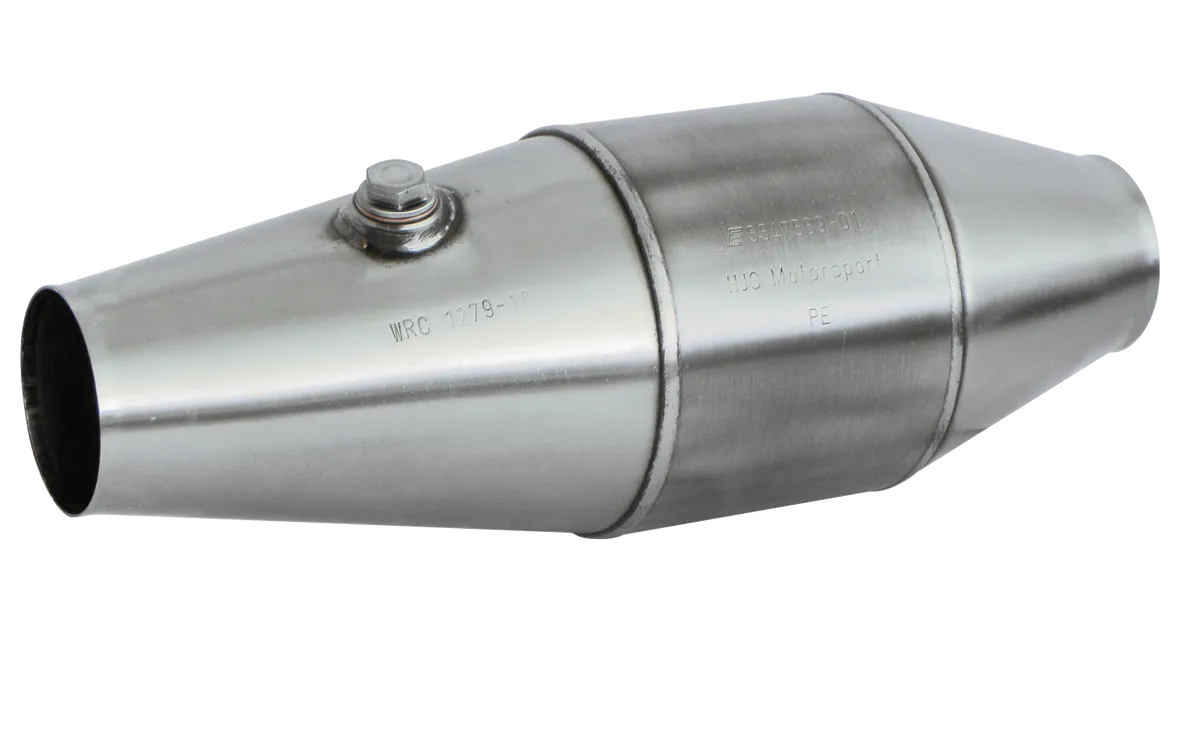

 WRC 1279/10 PE
2.0 kg up to 350 hp/up to 2000 ccm,
up to 700 hp/up to 5000 ccm*
90 95 0050 90 95 0050 HJS-Nr. 90 95 0050
 GT 1407/10 PE
3.1 kg up to 400 hp/up to 3000 ccm,
up to 800 hp/up to 6000 ccm*

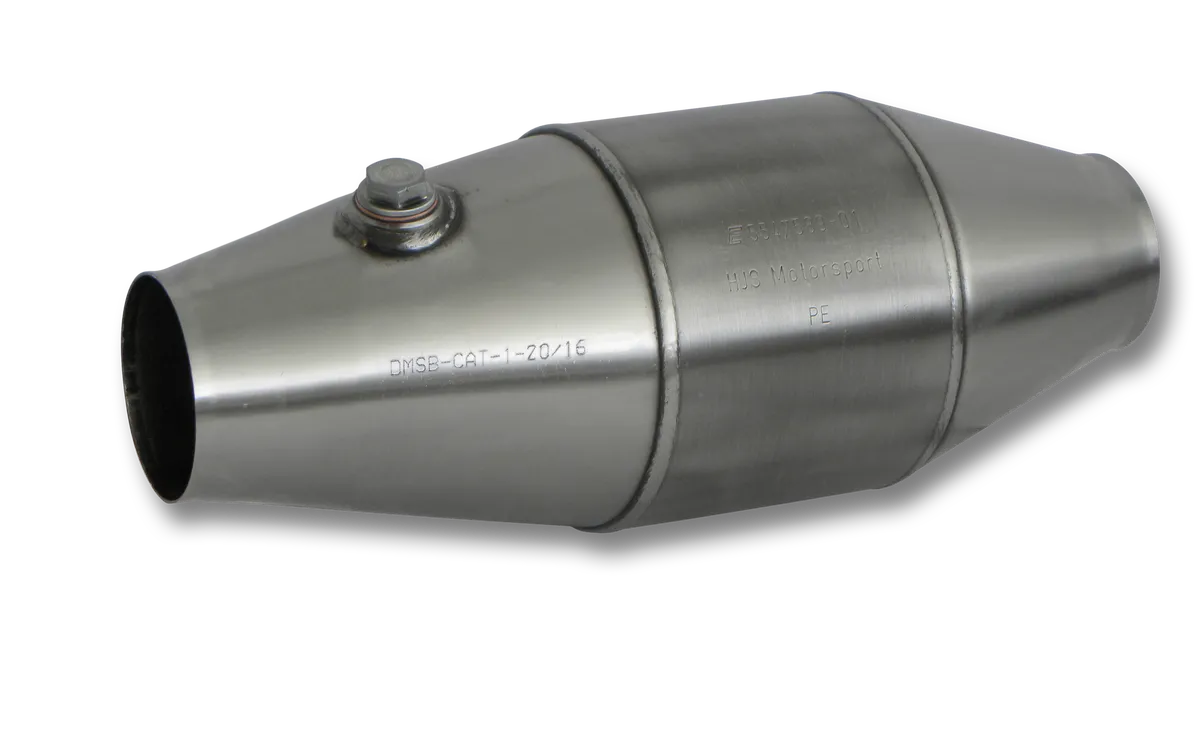

90 95 0069 90 95 0069
HJS-Nr. 90 95 0069
 DMSB-CAT-1-20/16
2.5 kg up to 500 hp/up to 3000 ccm,
up to 900 hp/up to 6000 ccm*
90950063 90 95 0063
HJS-Nr. 90950063
 DMSB-CAT-1-20/16
1.5 kg up to 350 hp/up to 1600 ccm

*Two catalytic converters to be mounted parallel

Dimensions of the drawings are state in mm
